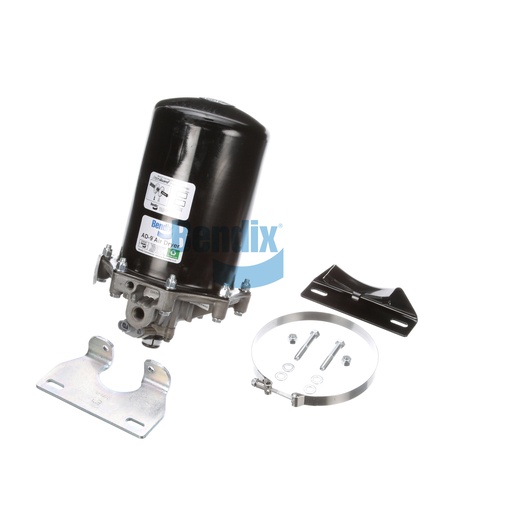

K054253
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is a crucial component in maintaining the efficiency and reliability of air brake systems in commercial vehicles. Designed to remove moisture and contaminants from the compressed air, this air dryer ensures that the braking system operates smoothly, reducing the risk of brake failure. Featuring a PuraGuard (Coalescing) cartridge type, it effectively captures oil and water, promoting a clean air supply. With a maximum inlet temperature of 160°F and a robust construction suitable for heavy-duty applications, this air dryer is built to withstand the demands of the road. The dual mounting options provide flexibility during installation, making it adaptable to various vehicle configurations. For high-quality Bendix OEM parts, Source One Parts Center is your trusted source, offering only the best for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Upper Mounting Bracket
.39 IN x 1.15 IN Slot (2x)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 75W
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
DLU (Hard Seat)
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Heater Connector Color
Gray
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Volume
Standard
Purge Exhaust Port
Standard (with Adapter)
Upper Mounting Type
Strap (Stainless Steel)
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
27.85 lb
