K092873

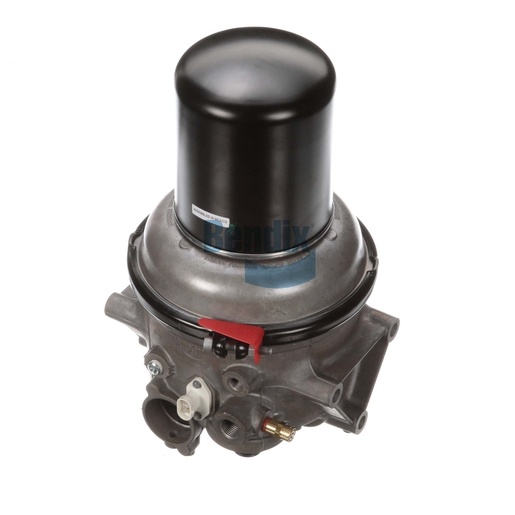

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is an essential component for maintaining the integrity of your truck's air supply system. This AD-9si model is engineered to effectively remove moisture and contaminants from the compressed air, preventing damage to critical components and ensuring optimal performance of the braking system. Its robust design enables it to withstand harsh operating conditions, making it ideal for heavy-duty applications. With features such as a standard purge volume and an easy-to-access cartridge design, maintenance becomes hassle-free, significantly reducing downtime. By ensuring clean, dry air, this air dryer helps prolong the life of your truck's air system and enhances overall efficiency. For genuine Bendix OEM parts, Source One Parts Center is the best choice, offering a comprehensive selection of quality components to keep your vehicle running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Body Mounting
1/2-13 UNC-2B (3x) - Both Sides
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/4-18 NPT (Plugged)
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Length
235.0 mm (9.25 in)
Width
238.0 mm (9.37 in)
Clamp Band Angle (CW from SUP)
335°
Height
382.0 mm (15.04 in)
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Turbo Cut-off Function
Yes
Weight
17.96 lb
