K092873PG

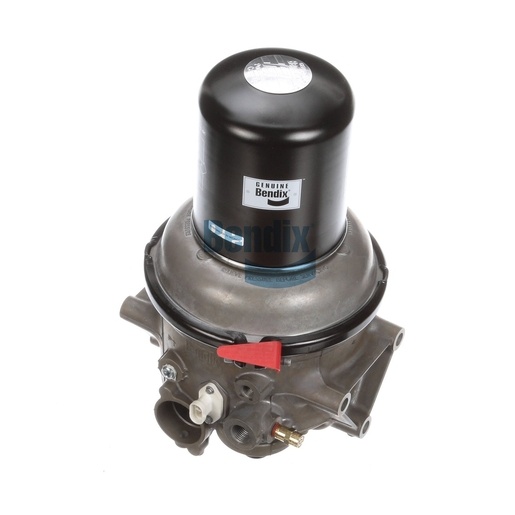

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Air Dryer from Bendix is a critical component in air treatment systems for commercial vehicles, designed to ensure your air supply remains clean and dry. This model features a PuraGuard coalescing cartridge that effectively removes moisture and contaminants, enhancing the longevity and performance of your air brake system. With a maximum inlet temperature of 160°F and a robust construction, this air dryer is engineered to withstand the rigors of daily use in heavy-duty applications. Its compact design includes multiple ports for easy installation, making it an ideal choice for fleet maintenance. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring that your vehicles are equipped with the highest quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Body Mounting
1/2-13 UNC-2B (3x) - Both Sides
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/4-18 NPT (Plugged)
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Length
235.0 mm (9.25 in)
Width
238.0 mm (9.37 in)
Clamp Band Angle (CW from SUP)
335°
Height
382.0 mm (15.04 in)
Harmonized System (HS) Code
842139
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Turbo Cut-off Function
Yes
Weight
17.68 lb
