K100348

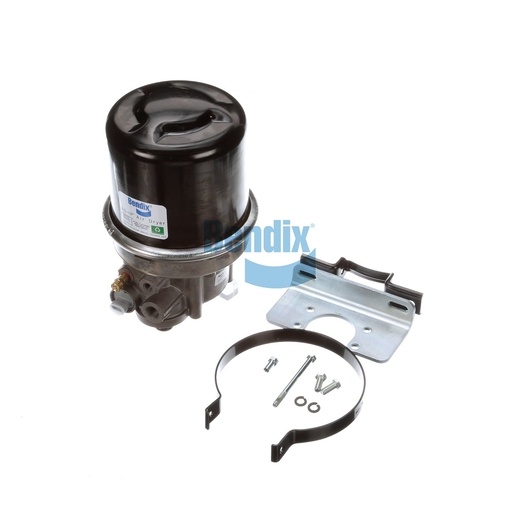

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Air Dryer from Bendix is a critical component for maintaining the efficiency of your vehicle's air treatment system. Designed specifically for the AD-9si series, this air dryer effectively removes moisture and contaminants from the compressed air system, ensuring optimal performance of the brakes and other pneumatic systems. Its stand-alone design includes features such as a standard purge volume and easy cartridge replacement, which simplifies maintenance and enhances reliability. Constructed with durability in mind, this air dryer operates effectively in a wide temperature range, from -40 °F to 185 °F, making it suitable for various operating conditions. Weighing 10.3 kg (22.63 lb), it is engineered to withstand the rigors of commercial vehicle use while providing consistent air quality. By investing in this air dryer, fleet operators can improve the longevity and performance of their braking systems. Source One Parts Center is the optimal choice for genuine Bendix OEM parts, ensuring you receive high-quality components that meet rigorous industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 90W
Body Mounting
3/8-16 UNC-2B (4x)
Harmonized System (HS) Code
842139
Upper Mounting Type
Clamp (Carbon Steel)
Heater Connector Color
Gray
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Weight
22.63 lb
