K109612

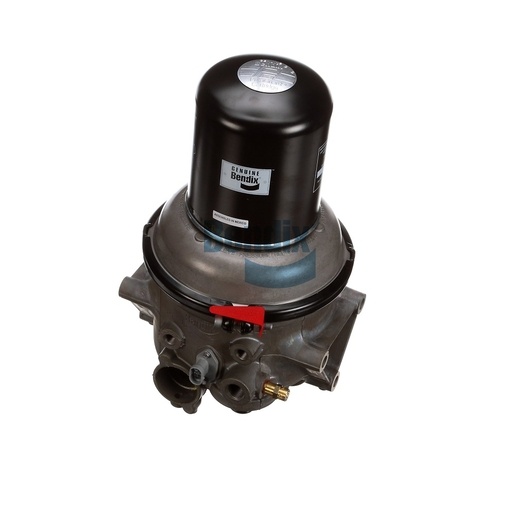

Air Dryer
Bendix

UNAVAILABLE

Bendix

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Bendix Air Dryer is an essential component for maintaining optimal air quality in your commercial vehicle's air brake system. Designed as a stand-alone unit, this air dryer effectively removes moisture, dirt, and contaminants from the compressed air, ensuring reliable brake operation and extending the lifespan of your air brake components. With a robust construction and advanced PuraGuard coalescing cartridge technology, it delivers superior filtration and maintains air purity, which is critical for the performance and safety of heavy-duty trucks. This air dryer operates under a wide temperature range, from -40°F to 160°F, making it suitable for various environmental conditions. Additionally, the air dryer features a maximum inlet temperature rating of 160°F and includes a hard seat purge valve for efficient moisture expulsion. Its compact design ensures easy installation, while its lightweight structure does not add unnecessary weight to your vehicle. For genuine Bendix OEM parts, Source One Parts Center is your trusted source, ensuring you get quality components that meet the highest standards for your commercial vehicle.

SPECIFICATIONS

Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Body Mounting
1/2-13 UNC-2B (3x) - Both Sides
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/4-18 NPT (Plugged)
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Length
235.0 mm (9.25 in)
Width
238.0 mm (9.37 in)
Heater / Thermostat Rating
24V / 75W
Clamp Band Angle (CW from SUP)
335°
Height
382.0 mm (15.04 in)
Harmonized System (HS) Code
842139
Heater Connector Color
Gray
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Cautionary Note(s)
Non-serviceable clamp band. Do not remove.
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
Standard
Turbo Cut-off Function
Yes
Weight
16.5 lb
