K134814
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

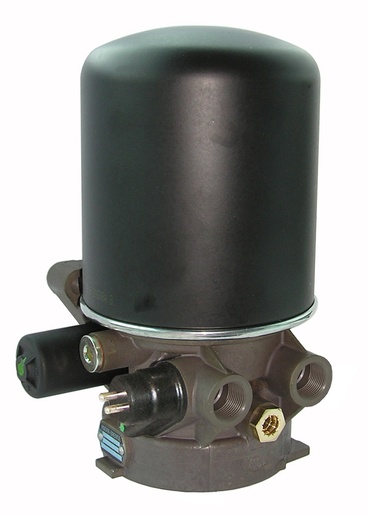

The Bendix Air Dryer is an essential component for maintaining the efficiency of your air treatment system. Designed for heavy-duty applications, this air dryer features advanced purge control and is built to handle high-pressure conditions, ensuring optimal moisture removal from the air supply. With specifications including a width of 145 mm and a height of 264 mm, this unit is compact yet powerful, providing reliable performance in demanding environments. The air dryer’s design includes an exhaust connector and multiple air inlet ports, facilitating easy installation and integration into your vehicle's existing systems. Its durable construction guarantees longevity and consistent performance, making it a wise investment for fleet operators. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, ensuring you receive quality products that keep your vehicles running smoothly.
SPECIFICATIONS
VMRS
013-010-252: Air Dryer W/Drain Valves
Unloader pressure control range [bar]
1,0 +0,5
Unloader cut-out pressure [bar]
12,0 +/-0,3
Safety valve pressure [bar]
14,5
Width
145.0 mm (5.71 in)
Length
171.0 mm (6.73 in)
Heater Voltage [volts]
24
Height
264.0 mm (10.39 in)
Harmonized System (HS) Code
842139
Heater Connection Type
Kostal M27x1,0 (2 x Ø4,0)
Air Delivery port(s) size
M22x1,5
Air Inlet port(s) size
M22x1,5
Country of Origin
Mexico
With internal Silencer
No
Purge control
Reservoir; Port: VOSS NG8 M16x1,5, Ø9,5
Exhaust Connector
Ø 20,0 mm
