K138951
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

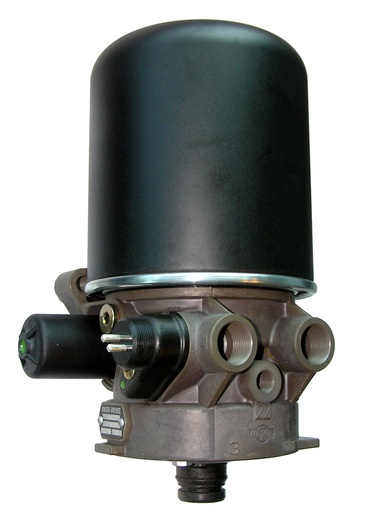

The Bendix Air Dryer is a critical component in maintaining the air quality in your commercial vehicle's braking system. Designed to efficiently remove moisture and contaminants from the compressed air, this air dryer helps prevent corrosion and wear on brake components, ensuring longevity and reliability. Its innovative design includes a built-in silencer, reducing noise during operation, while the robust construction allows it to perform effectively in extreme temperatures ranging from -40°F to 200°F. The air dryer's quick purge cycle enhances system efficiency, providing clean air for optimal braking performance. This part is essential for any operator looking to maintain their braking system's integrity and performance. For the best in genuine Bendix OEM parts, Source One Parts Center is the premier destination, ensuring that you receive parts that meet the highest standards of quality and reliability.
SPECIFICATIONS
VMRS
013-010-252: Air Dryer W/Drain Valves
Unloader pressure control range [bar]
1,3 +0,7
Unloader cut-out pressure [bar]
12,5 +/-0,2
Safety valve pressure [bar]
15,5
Width
165.0 mm (6.5 in)
Length
180.0 mm (7.09 in)
Heater Voltage [volts]
24
Height
280.0 mm (11.02 in)
Harmonized System (HS) Code
842139
Heater Connection Type
Bayonet ISO 15170 A1 - 2.1.1.Ag/K3
Country of Origin
Mexico
Purge control
Reservoir; Port: VOSS NG8 M16x1,5
Exhaust Connector
Snap-on Connector
Air Delivery port(s) size
VOSS NG12 M22x1,5
Air Inlet port(s) size
VOSS NG12 M22x1,5
With internal Silencer
Yes
