DESCRIPTION

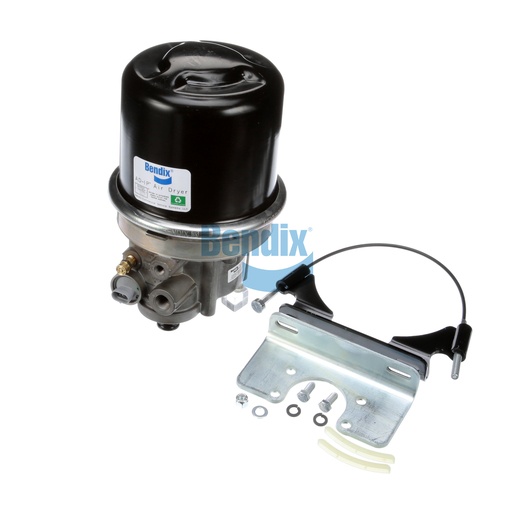

The Bendix Air Dryer is an essential component designed to ensure clean and dry compressed air for the braking system of commercial vehicles. This advanced model features a stand-alone design, equipped with high-performance filtration technology to effectively remove moisture and contaminants from the air supply. With a net weight of 29.15 lbs, it is built to endure the heavy-duty demands of the trucking industry, ensuring reliable performance. By preventing moisture from entering the braking system, the air dryer helps extend the life of air brake components and reduce maintenance costs. Its robust construction and efficient operation make it a vital part of any commercial vehicle's braking system. For sourcing genuine Bendix OEM parts, Source One Parts Center is your best option, ensuring quality and reliability in every product.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 90W
Body Mounting
3/8-16 UNC-2B (4x)
Harmonized System (HS) Code
842139
Upper Mounting Type
Cable
Heater Connector Color
Gray
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Weight
29.15 lb
