$689.95
$827.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

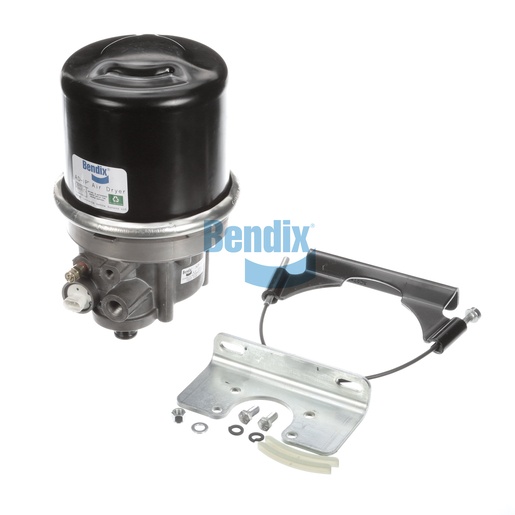

The Bendix Air Dryer is a key component in your vehicle's air treatment system, effectively removing moisture and contaminants from the compressed air. This dryer is designed to enhance the performance and longevity of your air brake system by ensuring that only clean, dry air is delivered to the brakes. With advanced features like a standard purge volume and various port connections, it is built for reliability and efficiency in demanding conditions. Weighing 11.5 kg, it is robust and designed for heavy-duty use. When you choose Source One Parts Center, you are selecting the best source for genuine Bendix OEM parts, ensuring your truck operates safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Body Mounting
3/8-16 UNC-2B (4x)
Harmonized System (HS) Code
842139
Upper Mounting Type
Cable
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
25.29 lb
