This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

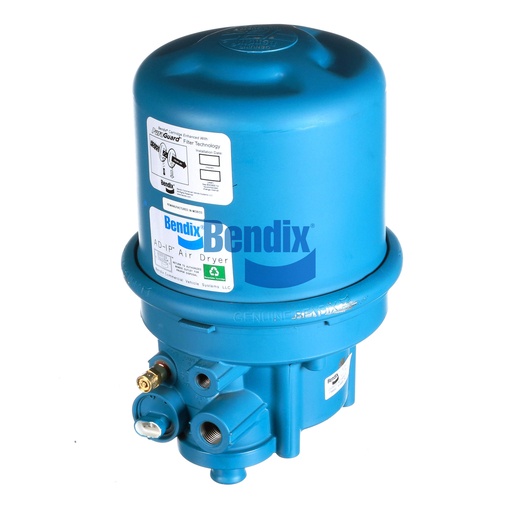

The Air Dryer from Bendix is essential for maintaining the integrity of your air supply system by removing moisture and contaminants. This high-performance dryer is designed to ensure optimal braking performance and system reliability, even in harsh conditions. Weighing 28.05 lb, it features advanced technology to enhance air quality and efficiency, making it a vital component for any commercial vehicle. Its robust construction allows for extended service life and reduced maintenance needs, contributing to overall operational efficiency. By sourcing your parts from Source One Parts Center, you can be confident that you are purchasing authentic Bendix OEM parts that uphold the highest standards of quality and performance for your truck.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Safety Valve Opening Pressure
200 PSI
Length
214.0 mm (8.43 in)
Width
224.0 mm (8.82 in)
Body Mounting
3/8-16 UNC-2B (4x)
Height
338.0 mm (13.31 in)
Harmonized System (HS) Code
842139
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Purge Valve Type
Hard Seat
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
28.05 lb
