109503

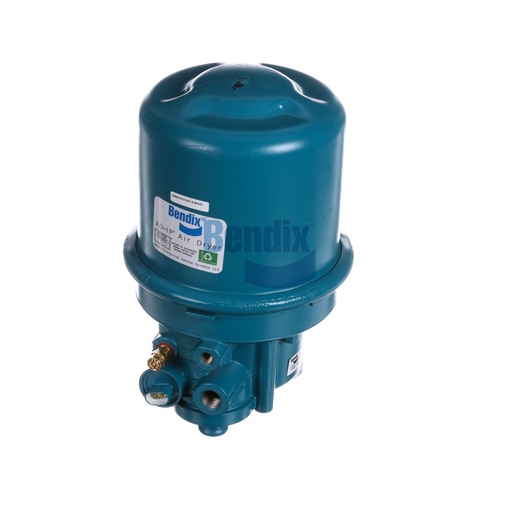

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is a key component in ensuring the performance and longevity of your vehicle's braking system. Designed to efficiently remove moisture and contaminants from the compressed air, this air dryer helps maintain optimal air quality, thereby enhancing braking reliability. With a net weight of 12.7 kg, it is built to withstand the harsh conditions of commercial vehicles while providing consistent performance across a wide temperature range. The easy installation and low maintenance requirements make it an ideal choice for fleet operators looking to minimize downtime and maximize safety. By investing in a Bendix air dryer, you're ensuring that your braking system operates at peak efficiency. For a reliable source for Bendix products, Source One Parts Center offers a comprehensive selection of genuine OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Safety Valve Opening Pressure
200 PSI
Length
214.0 mm (8.43 in)
Width
224.0 mm (8.82 in)
Body Mounting
3/8-16 UNC-2B (4x)
Height
338.0 mm (13.31 in)
Harmonized System (HS) Code
842139
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
28.09 lb
