FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

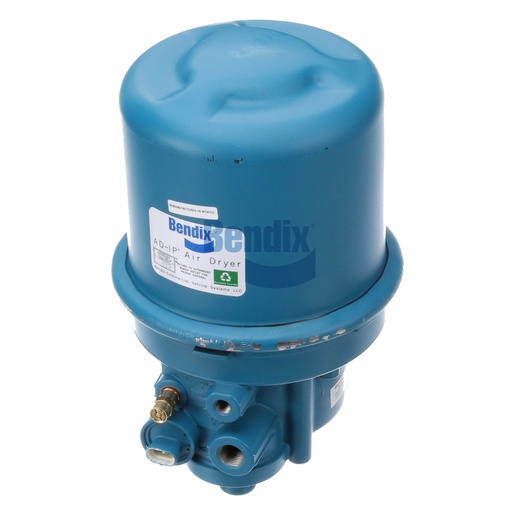

The Bendix Air Dryer is a vital component of your vehicle's air treatment system, designed to remove moisture and contaminants from compressed air, thereby enhancing the efficiency and reliability of the braking system. Constructed in Mexico, this stand-alone air dryer is compatible with a variety of commercial vehicles and features a standard purge volume that ensures optimal performance. Weighing 12.7 kg (28.0 lb), it boasts dimensions that allow for flexible installation while maintaining a robust design to withstand the rigors of heavy-duty applications. With a maximum operating temperature of 200 °F (93 °C) and a minimum of -40 °F (-40 °C), this air dryer is engineered to perform in extreme conditions. Investing in a genuine Bendix Air Dryer ensures long-lasting performance and peace of mind. For all your Bendix needs, Source One Parts Center is the best place to find genuine OEM parts that guarantee quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Safety Valve Opening Pressure
200 PSI
Length
214.0 mm (8.43 in)
Width
224.0 mm (8.82 in)
Body Mounting
3/8-16 UNC-2B (4x)
Height
338.0 mm (13.31 in)
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
28 lb
