5006234

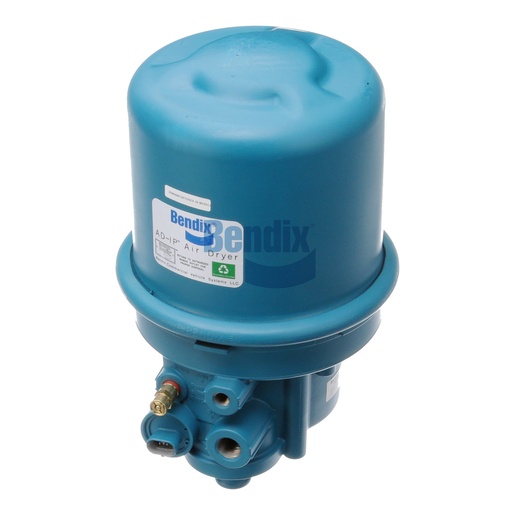

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is a critical unit for ensuring the air systems in commercial vehicles remain free of moisture and contaminants, promoting the longevity and efficiency of air-operated components. This model is part of the AD-IP series and is specifically designed to handle the unique demands of heavy-duty applications. With a robust construction and a net weight of 12.7 kg (28.0 lb), it features a standard purge volume and a maximum inlet temperature of 160 °F (71 °C), making it suitable for a wide range of operating conditions. The air dryer employs a reliable cartridge system for easy maintenance, enhancing the overall performance of the vehicle's air system. Its ability to operate effectively even in extreme temperatures, ranging from -40 °F to 160 °F, makes it a vital component for any commercial truck. When it comes to sourcing genuine Bendix parts, Source One Parts Center is the best choice, providing a comprehensive selection of high-quality OEM components for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Length
214.0 mm (8.43 in)
Width
224.0 mm (8.82 in)
Heater / Thermostat Rating
24V / 90W
Body Mounting
3/8-16 UNC-2B (4x)
Height
338.0 mm (13.31 in)
Harmonized System (HS) Code
842139
Heater Connector Color
Gray
Purge Valve Type
Hard Seat
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Weight
28 lb
