5020368

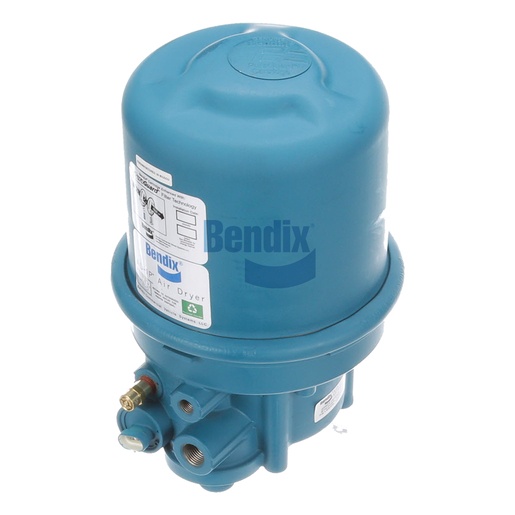

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Air Dryer is an essential component that plays a critical role in the air treatment system of commercial vehicles. Designed to remove moisture and contaminants from the compressed air system, this air dryer ensures that your vehicle's brake system operates efficiently and reliably. With a robust design and a weight of 12.7 kg, it is built to endure the harsh conditions faced by heavy-duty trucks while maintaining optimal performance. This air dryer features a PuraGuard cartridge for effective coalescing, ensuring that the air remains clean and dry, which is vital for the longevity of your braking components. By utilizing genuine Bendix parts like this Air Dryer, you can enhance the performance and safety of your vehicle. Source One Parts Center is the best source for purchasing authentic Bendix OEM parts, guaranteeing quality and reliability for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Length
214.0 mm (8.43 in)
Width
224.0 mm (8.82 in)
Body Mounting
3/8-16 UNC-2B (4x)
Height
338.0 mm (13.31 in)
Harmonized System (HS) Code
842139
Purge Valve Type
DLU (Hard Seat)
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
28.09 lb
