$949.95
$1,139.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

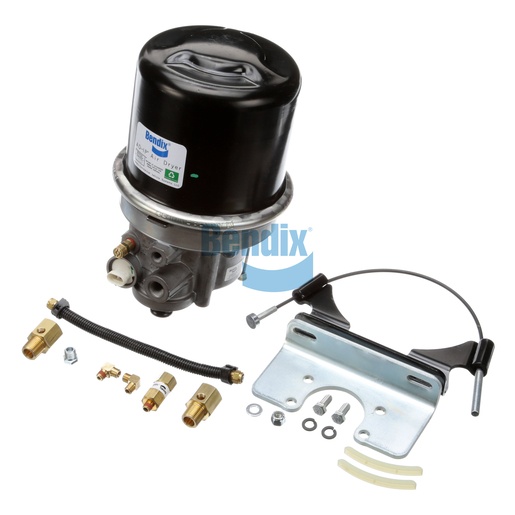

The Bendix Air Dryer is a crucial component in the air treatment system, designed to remove moisture and contaminants from the compressed air supply in heavy-duty vehicles. This air dryer features a stand-alone design with advanced filtration capabilities, ensuring that the air supplied to the braking system is clean and dry, thereby enhancing performance and extending the life of air brake components. With a maximum inlet temperature of 160 °F and a robust construction, this dryer is engineered to withstand the rigors of commercial applications while providing reliable service. Its compatibility with various systems makes it an ideal choice for fleet maintenance and repairs. By investing in a quality air dryer, you ensure optimal braking performance and safety on the road. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, guaranteeing high-quality products for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Body Mounting
3/8-16 UNC-2B (4x)
Harmonized System (HS) Code
842139
Upper Mounting Type
Cable
Cautionary Note(s)
Drop-In (DI) version - do not replace with standard dryer.
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
27.82 lb
