$789.95
$947.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

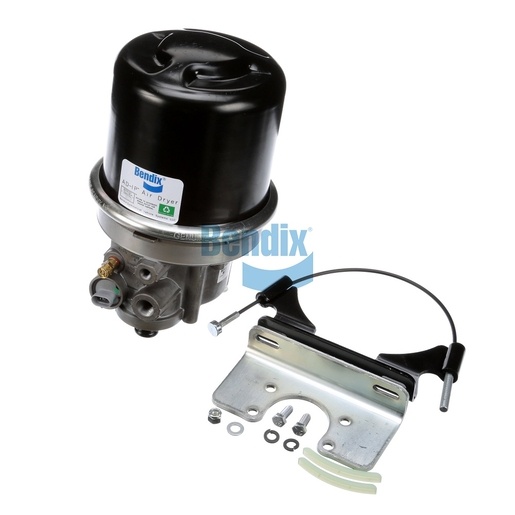

The Bendix Air Dryer is a critical component for maintaining the efficiency and reliability of your vehicle's air brake system. Designed to remove moisture and contaminants from the compressed air, this dryer ensures that your braking system operates smoothly under all conditions. Its robust construction guarantees durability and long-lasting performance, making it ideal for heavy-duty applications. Easy to install and maintain, this air dryer helps to prevent corrosion and other issues that can arise from moisture in the air system, enhancing the overall safety of your vehicle. For genuine Bendix parts, including this essential air dryer, trust Source One Parts Center to provide you with the quality and reliability you need for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 90W
Body Mounting
3/8-16 UNC-2B (4x)
Harmonized System (HS) Code
842139
Upper Mounting Type
Cable
Heater Connector Color
Gray
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Weight
28.09 lb
