$799.95
$959.94

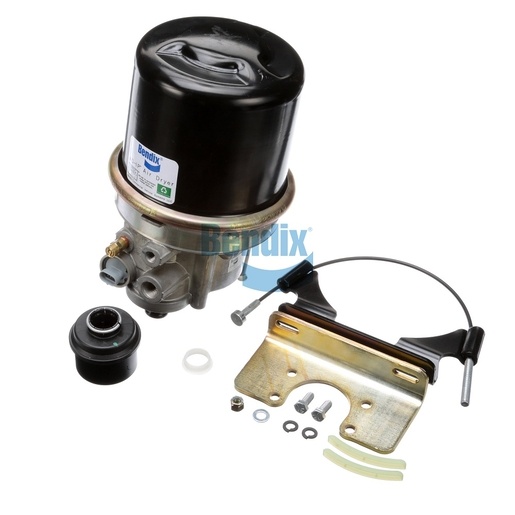

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is a vital component in maintaining the integrity of your truck's air system. By effectively removing moisture and contaminants from the compressed air, this air dryer prevents corrosion and prolongs the life of your braking system and other critical pneumatic components. Featuring a robust design, the air dryer operates efficiently in a wide range of temperatures, ensuring reliable performance even in extreme conditions. Its standard purge volume allows for effective moisture management, while the integrated heater ensures optimal function in cold weather. With a straightforward installation process, this air dryer is ideal for fleet maintenance, helping to reduce downtime and enhance overall vehicle reliability. Purchasing your Bendix Air Dryer from Source One Parts Center guarantees you access to genuine OEM parts, providing the assurance of quality and compatibility for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 90W
Body Mounting
3/8-16 UNC-2B (4x)
Harmonized System (HS) Code
842139
Upper Mounting Type
Cable
Heater Connector Color
Gray
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Purge Exhaust Port
Standard (with Adapter / Silencer)
Weight
28 lb
