DESCRIPTION

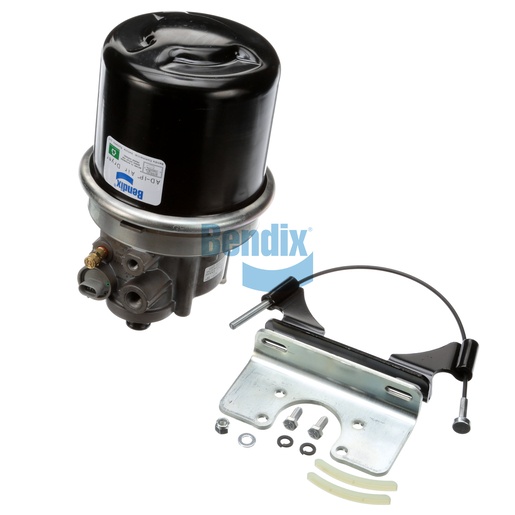

The Bendix Air Dryer is an advanced air treatment solution designed to ensure your commercial vehicle operates efficiently and reliably. This stand-alone model effectively removes moisture and contaminants from the compressed air supply, which is critical for maintaining the functionality of air brakes and suspension systems. With a purging system that operates under extreme temperatures ranging from -40 °F to a maximum of 160 °F, this air dryer is built to perform in the harshest conditions. Featuring standard ports for easy installation and maintenance, it allows for seamless integration into your vehicle’s air system. The durable construction ensures longevity, reducing the likelihood of failures that can lead to costly downtime and repairs. Investing in a high-quality air dryer is paramount for improving overall vehicle performance and safety. Source One Parts Center is the ideal source for genuine Bendix OEM parts, offering exceptional quality and service to meet your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Safety Valve Opening Pressure
200 PSI
Length
214.0 mm (8.43 in)
Width
224.0 mm (8.82 in)
Heater / Thermostat Rating
24V / 90W
Body Mounting
3/8-16 UNC-2B (4x)
Height
338.0 mm (13.31 in)
Harmonized System (HS) Code
842139
Upper Mounting Type
Cable
Purge Valve Type
DLU (Hard Seat)
Heater Connector Color
Gray
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Weight
28.09 lb
