DESCRIPTION

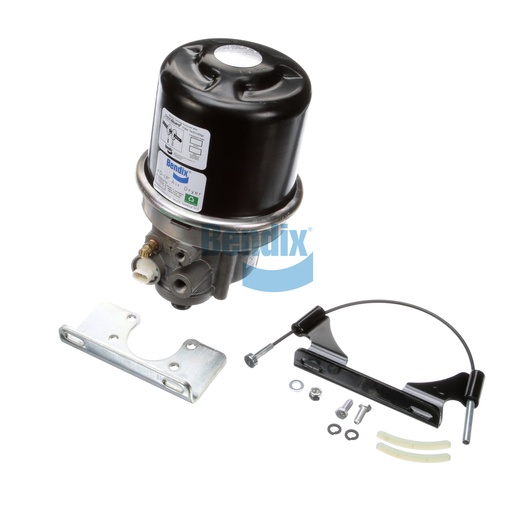

The Air Dryer is an indispensable component in the air treatment system of your commercial vehicle, ensuring that the air used in the braking system is free from moisture and contaminants. This Bendix air dryer features a stand-alone design that effectively removes water vapor, preventing corrosion and enhancing the longevity of your braking components. With a maximum inlet temperature of 160 °F and the capability to operate in extreme conditions, this air dryer is engineered to deliver consistent performance. The PuraGuard coalescing cartridge design ensures superior filtration, contributing to the efficient operation of your air brake system. Its installation is straightforward, making it a great choice for fleet managers looking to enhance vehicle reliability. By using a genuine Bendix air dryer, you can significantly reduce the risk of brake system failures due to moisture buildup. Source One Parts Center is your best resource for sourcing authentic Bendix parts, ensuring your vehicle operates safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Width
214.0 mm (8.43 in)
Length
222.0 mm (8.74 in)
Body Mounting
3/8-16 UNC-2B (4x)
Height
339.0 mm (13.35 in)
Harmonized System (HS) Code
842139
Upper Mounting Type
Cable
Purge Valve Type
DLU (Hard Seat)
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
28.09 lb
