5008871

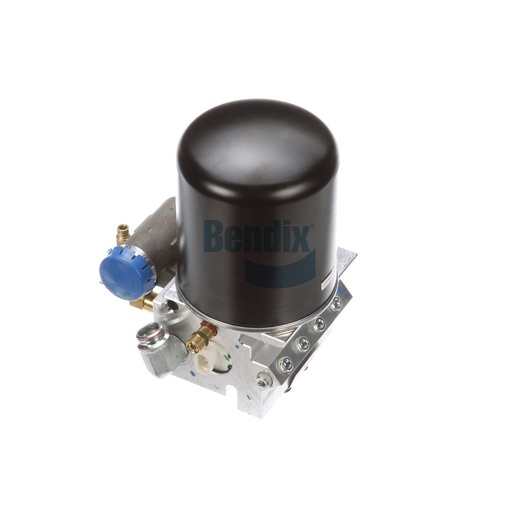

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is an essential component in air treatment systems for commercial vehicles, designed to purify the air supply by removing moisture and contaminants. This dryer is a stand-alone unit that features a non-adjustable governor, ensuring consistent performance across various applications. Weighing 11.8 kg (25.99 lb), it is built to withstand the demanding environments typical of heavy-duty truck operations. With a maximum inlet temperature of 160 °F (71 °C) and a robust design that facilitates easy maintenance, the air dryer is engineered for longevity and reliability. By investing in this genuine Bendix product, you can enhance the overall efficiency of your vehicle's braking system. For top-quality Bendix OEM parts, Source One Parts Center is the best place to turn for genuine products that deliver consistent performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
AUX 1 Delivery Port 1
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 2
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 3
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 4
1/4-18 NPT (Plugged)
AUX 2 Delivery Port
1/4-18 NPT (Plugged)
PRI Delivery Port 21
1/4-18 NPT x 1/2 PTC (Straight)
SEC Delivery Port 22
1/4-18 NPT x 1/2 PTC (Straight)
Remote Charge / Fill Port (through Desiccant)
1/4-18 NPT x 1/4-18 NPT (with Single Check Vlv / Schrader Vlv)
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 PTC (90° Elbow)
PRI Delivery Opening Pressure
103 PSI
SEC Delivery Opening Pressure
109 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Pressure Protection Valve Configuration
2 in Series
Supply Port
5/8 STC (90° Elbow)
AUX 1 Delivery Opening Pressure
55 PSI
Harmonized System (HS) Code
842139
AUX 2 Delivery Opening Pressure
85 PSI
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
25.99 lb
