5010410

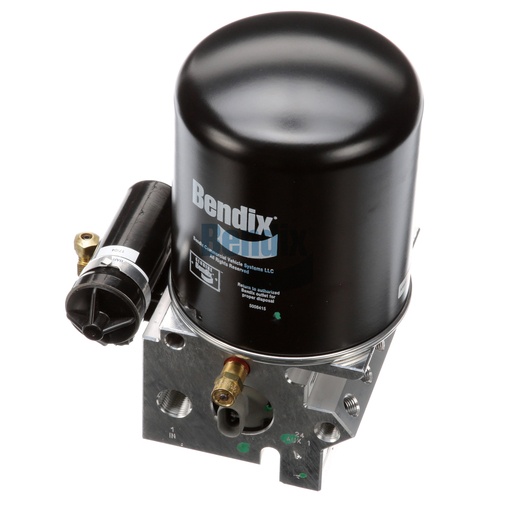

Air Dryer
Bendix

UNAVAILABLE

Bendix

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Bendix Air Dryer is a crucial component in the air treatment system, designed to remove moisture and contaminants from compressed air before it enters the braking system. Weighing 25.99 lbs, this heavy-duty air dryer ensures optimal performance and reliability in harsh operating conditions. With a maximum operating temperature of 160°F and a minimum of -40°F, this dryer is built to handle a wide range of temperatures, making it suitable for various applications. Its innovative design features adjustable governors and easy-to-access ports for maintenance, ensuring long-lasting functionality. For those looking for high-quality components, Source One Parts Center is your best choice for genuine Bendix OEM parts, providing the reliability and performance needed for commercial vehicles.

SPECIFICATIONS

Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 Tube (Compression / 90° Elbow)
AUX 1 Delivery Opening Pressure
106 PSI
AUX 2 Delivery Opening Pressure
106 PSI
PRI Delivery Opening Pressure
106 PSI
SEC Delivery Opening Pressure
106 PSI
Cut-in Pressure
110 PSI
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Heater / Thermostat Rating
24V / 90W
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Governor Type
Adjustable
Heater Connector Color
Gray
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Governor Included
Yes
Weight
25.99 lb
