FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

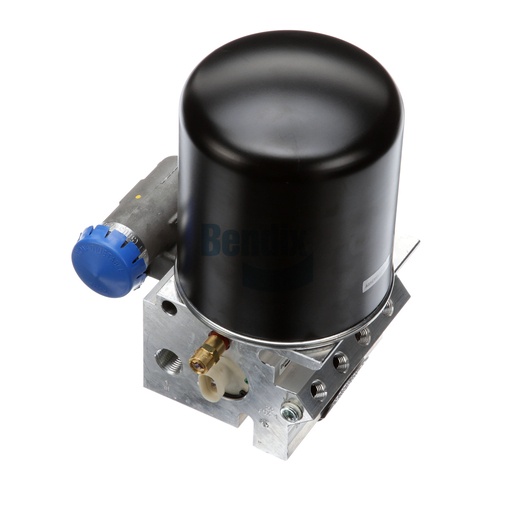

Upgrade your commercial vehicle's air treatment system with Bendix's high-performance air dryer, designed to enhance efficiency and reliability in demanding environments. This stand-alone air dryer features a non-adjustable governor and is equipped with a standard purge valve, ensuring that your air system remains free from moisture and contaminants, which can lead to premature wear and costly repairs. With a cut-in pressure of 110 PSI and a cut-out pressure of 130 PSI, this air dryer effectively maintains optimal system pressure for peak performance. Its robust construction is tailored for a wide range of applications, making it an ideal choice for fleet operations looking to reduce downtime and improve overall vehicle reliability. When you choose Source One Parts Center for your Bendix OEM parts, you can be confident in receiving genuine products that meet the highest industry standards, ensuring your vehicle operates smoothly and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
AUX 1 Delivery Port 1
1/4-18 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
PRI Delivery Opening Pressure
103 PSI
AUX 1 Delivery Opening Pressure
109 PSI
AUX 2 Delivery Opening Pressure
109 PSI
SEC Delivery Opening Pressure
109 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Length
160.0 mm (6.3 in)
Width
205.0 mm (8.07 in)
Height
286.0 mm (11.26 in)
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
15.4 lb
