$819.95
$983.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

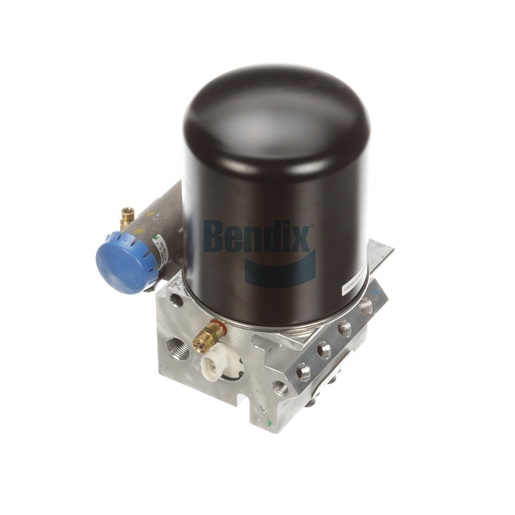

Optimize your vehicle's air treatment system with Bendix's air dryer, engineered for efficient moisture removal and optimal air quality in your braking system. This stand-alone air dryer employs advanced technology to ensure that your compressed air remains free from contaminants, which can adversely affect brake performance and lead to costly repairs. With a cut-in pressure of 110 PSI and a cut-out pressure of 130 PSI, it effectively maintains the necessary pressure levels for seamless operation. Its durable design makes it suitable for a range of commercial applications, providing reliability and longevity. When you need genuine Bendix parts, Source One Parts Center stands out as the premier destination for quality OEM products that enhance your vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT (Plugged)
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 PTC (90° Elbow)
PRI Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Pressure Protection Valve Configuration
2 in Series
AUX 1 Delivery Opening Pressure
55 PSI
Harmonized System (HS) Code
842139
AUX 2 Delivery Opening Pressure
85 PSI
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
25.99 lb
