$819.95
$983.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

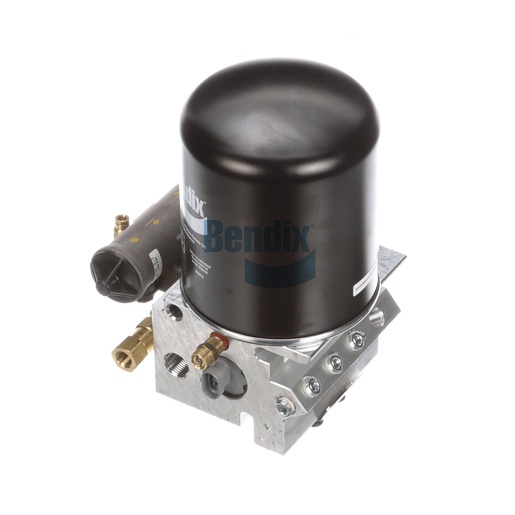

The Bendix Air Dryer is a key component in maintaining the efficiency and reliability of your truck's air brake system. Designed to eliminate moisture and contaminants from compressed air, this air dryer features a durable construction that extends its service life. With a cut-in pressure of 105 PSI and a cut-out pressure of 125 PSI, it effectively regulates air flow to ensure optimal braking performance. The air dryer also includes a governor for precise control over the air supply, enhancing overall system efficiency. Its compact design allows for seamless installation in various vehicle configurations. By selecting the Bendix Air Dryer from Source One Parts Center, you ensure that your braking system operates at peak performance, providing safety and reliability on the road. Source One Parts Center is the optimal choice for genuine Bendix OEM parts, delivering quality you can depend on.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
AUX 1 Delivery Port 1
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 2
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 3
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 4
1/4-18 NPT (Plugged)
Remote Charge / Fill Port (through Desiccant)
1/4-18 NPT x 1/4-18 NPT (Female / 90° Elbow / Single Check Vlv)
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 PTC (90° Elbow)
Cut-in Pressure
105 PSI
AUX 1 Delivery Opening Pressure
106 PSI
AUX 2 Delivery Opening Pressure
106 PSI
PRI Delivery Opening Pressure
106 PSI
SEC Delivery Opening Pressure
106 PSI
Cut-out Pressure
125 PSI
Safety Valve Opening Pressure
153 PSI
Heater / Thermostat Rating
24V / 90W
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Governor Type
Adjustable
Heater Connector Color
Gray
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Governor Included
Yes
Weight
11.99 lb
