801264

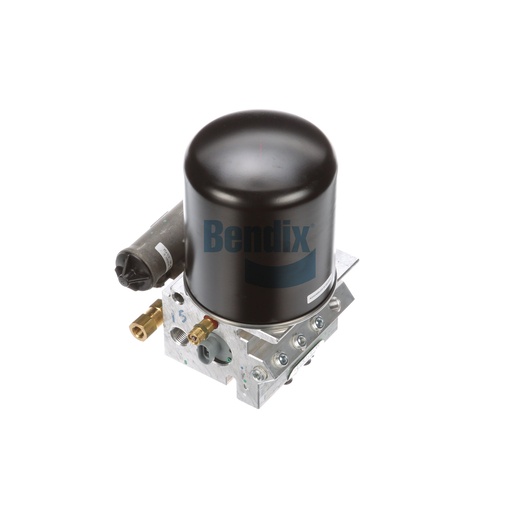

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is an essential unit designed to ensure the efficient operation of your vehicle's air brake system by removing moisture and contaminants from the compressed air. This air dryer employs advanced filtration technology, helping to maintain optimal air quality and prevent damage to other brake components. Its stand-alone design allows for easy integration with various systems, and it operates effectively across a broad temperature range, from -40°F to 200°F, ensuring reliability in diverse conditions. The adjustable governor allows for precise control of air pressure, enhancing the performance and safety of your braking system. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center provides the best selection and service to keep your commercial vehicles running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
AUX 1 Delivery Port 1
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 2
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 3
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 4
1/4-18 NPT (Plugged)
Remote Charge / Fill Port (through Desiccant)
1/4-18 NPT x 1/4-18 NPT (Female / 90° Elbow / Single Check Vlv)
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT (Plugged)
Cut-in Pressure
105 PSI
AUX 1 Delivery Opening Pressure
106 PSI
AUX 2 Delivery Opening Pressure
106 PSI
PRI Delivery Opening Pressure
106 PSI
SEC Delivery Opening Pressure
106 PSI
Cut-out Pressure
125 PSI
Safety Valve Opening Pressure
153 PSI
Heater / Thermostat Rating
24V / 90W
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Governor Type
Adjustable
Purge Valve Type
DLU (Hard Seat)
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Governor Included
Yes
Weight
15.74 lb
