801266PG

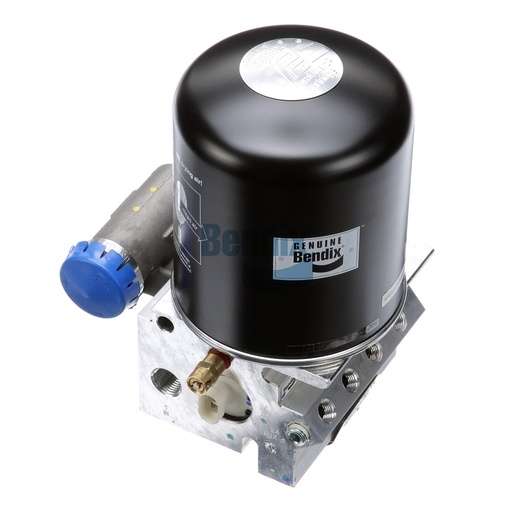

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Air Dryer is integral to maintaining the integrity of your vehicle's air brake system by efficiently removing moisture and contaminants from the compressed air. This stand-alone unit features a PuraGuard cartridge and operates with a non-adjustable governor, ensuring reliable performance. With a cut-in pressure of 110 PSI and a cut-out pressure of 130 PSI, it is designed for optimal air quality and system efficiency. This air dryer can function effectively in temperatures ranging from -40°F to 160°F, making it suitable for diverse climates. Its robust design and functionality make it a critical component for any commercial vehicle. For genuine Bendix OEM parts, Source One Parts Center is your trusted source.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
AUX 1 Delivery Port 1
1/4-18 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
PRI Delivery Opening Pressure
103 PSI
AUX 1 Delivery Opening Pressure
109 PSI
AUX 2 Delivery Opening Pressure
109 PSI
SEC Delivery Opening Pressure
109 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
15 lb
