$789.95
$947.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

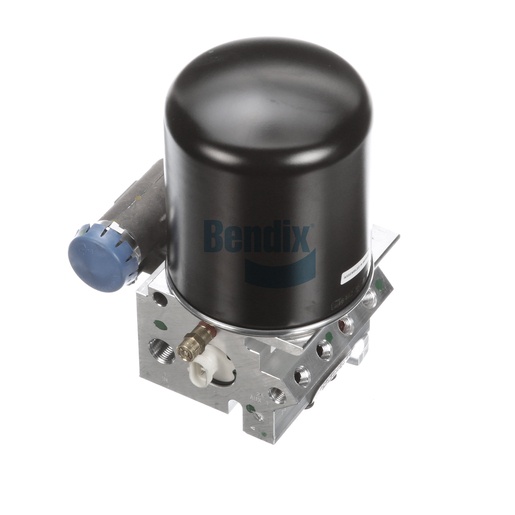

The Air Dryer is an essential part of your commercial vehicle’s air treatment system, effectively removing moisture and impurities from the compressed air supply. This model is designed to withstand rigorous conditions, with a net weight of 6.9 kg, and is engineered to ensure the reliability of your vehicle's braking system. Made in Mexico, this air dryer features advanced technology that enhances air quality, significantly reducing the risk of component damage and maintaining optimal braking performance. Its robust design allows for efficient operation in extreme temperatures, making it suitable for a wide range of environments. Investing in a high-quality air dryer is crucial for fleet operators who prioritize safety and efficiency. Source One Parts Center stands out as the best choice for genuine Bendix OEM parts, ensuring that you receive top-quality components tailored to your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
AUX 1 Delivery Opening Pressure
103 PSI
PRI Delivery Opening Pressure
103 PSI
SEC Delivery Opening Pressure
103 PSI
AUX 2 Delivery Opening Pressure
109 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
DLU (Hard Seat)
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
15.32 lb
