$849.95
$1,019.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

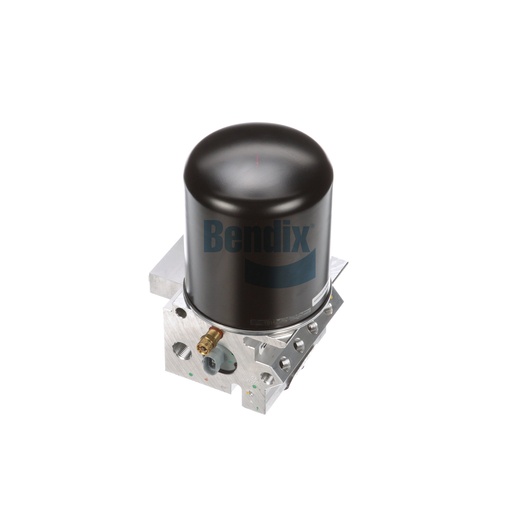

The Bendix Air Dryer is a high-performance air treatment solution essential for maintaining the efficiency of your commercial vehicle's braking system. This air dryer effectively removes moisture and contaminants from compressed air, preventing corrosion and ensuring optimal operation of air brake systems. Designed to function seamlessly with the AD-IS series, it features a standard purge valve that helps manage the air supply efficiently, enhancing brake responsiveness and overall safety. Its robust construction allows it to operate effectively in extreme temperatures, from -40°F to 160°F, making it suitable for a wide range of environments. With a net weight of 6.6 kg, this air dryer is engineered for easy installation and maintenance, ensuring your vehicle remains in peak condition. For those in search of the best place to buy Bendix OEM parts, Source One Parts Center offers an extensive selection of genuine components that deliver unmatched quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT
AUX 1 Delivery Opening Pressure
103 PSI
PRI Delivery Opening Pressure
103 PSI
SEC Delivery Opening Pressure
103 PSI
AUX 2 Delivery Opening Pressure
109 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Heater / Thermostat Rating
24V / 90W
Governor Reservoir Port
3/8-18 NPT
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Air Dryer Type
Alpha
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Included
No
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Purge Valve Type
Soft Seat
Cartridge Type
Standard
Purge Exhaust Port
Standard
Weight
14.49 lb
