$729.95
$875.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

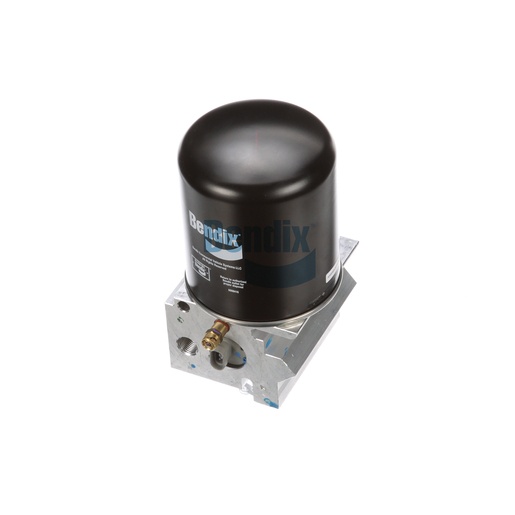

The Air Dryer by Bendix is a crucial component for maintaining optimal air quality in your commercial vehicle's braking system. Designed to effectively remove moisture and contaminants from the air supply, this dryer enhances the reliability of your air brakes, preventing potential failures due to moisture-related issues. With a maximum inlet temperature of 160°F and a durable construction, it is engineered for performance and longevity in demanding conditions. The air dryer is compatible with various setups, making it versatile for fleet applications. Weighing 4.5 kg, it is designed for easy installation and maintenance, ensuring that your air brake system operates at peak efficiency. Source One Parts Center is the ultimate destination for genuine Bendix OEM parts, providing the quality you need for your fleet's safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
Governor Unloader Port
1/4-18 NPT
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Heater / Thermostat Rating
24V / 90W
PRI Delivery Port 21
3/8-18 NPT
Governor Reservoir Port
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
842139
Air Dryer Type
Beta
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Included
No
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Purge Valve Type
Soft Seat
Cartridge Type
Standard
Purge Exhaust Port
Standard
Weight
9.99 lb
