$729.95
$875.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

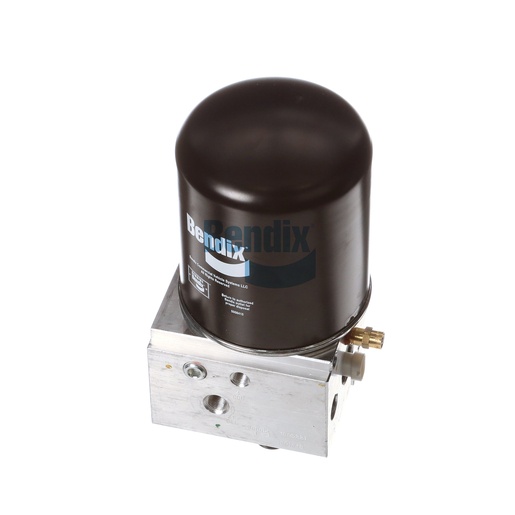

Experience superior air treatment with the Bendix Air Dryer, a crucial component designed to keep your commercial vehicle's air system functioning optimally. This high-performance air dryer eliminates moisture and contaminants from the compressed air, preventing corrosion and enhancing the lifespan of your braking system. With a robust construction that withstands harsh operating conditions, it’s engineered for reliability and efficiency, ensuring your vehicle operates safely and effectively. Its advanced design features a standard purge exhaust port and a soft seat purge valve, which contribute to its efficient moisture removal capabilities. The air dryer is compatible with various Bendix systems, making it a versatile choice for fleet maintenance. With a minimum operating temperature of -40°F, it functions optimally in extreme environments, ensuring that your air system remains unaffected by temperature variations. Investing in this air dryer means investing in the safety and performance of your vehicle. For genuine Bendix OEM parts like this air dryer, Source One Parts Center stands out as the best option, offering quality you can trust for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
Governor Unloader Port
1/4-18 NPT
Heater / Thermostat Rating
12V / 90W
Safety Valve Opening Pressure
153 PSI
PRI Delivery Port 21
3/8-18 NPT
Governor Reservoir Port
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
842139
Air Dryer Type
Beta
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Included
No
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Purge Valve Type
Soft Seat
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Weight
11.99 lb
