$969.95
$1,163.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

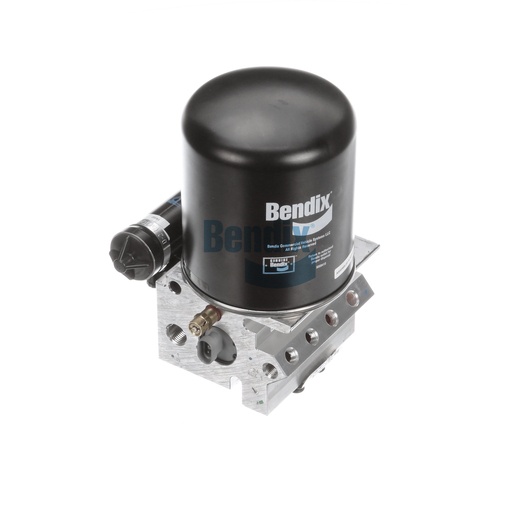

The Bendix Air Dryer is a critical component in the air treatment system of your commercial vehicle, designed to remove moisture and contaminants from the compressed air. This ensures that your braking system operates efficiently, reducing wear and tear on components and enhancing overall performance. With a maximum operating temperature of 200 °F and a durable construction, this air dryer is built to withstand the harsh conditions of commercial driving. Its adjustable governor allows for precise control of air pressure, optimizing the performance of your vehicle's braking system. Weighing 7.0 kg, this air dryer is engineered for easy installation and reliable function. For the highest quality Bendix OEM parts that guarantee safety and performance, Source One Parts Center is the ultimate destination for commercial vehicle maintenance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT (Plugged)
AUX 1 Delivery Opening Pressure
106 PSI
AUX 2 Delivery Opening Pressure
106 PSI
PRI Delivery Opening Pressure
106 PSI
SEC Delivery Opening Pressure
106 PSI
Cut-in Pressure
118 PSI
Cut-out Pressure
131 PSI
Safety Valve Opening Pressure
153 PSI
Heater / Thermostat Rating
24V / 90W
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Governor Type
Adjustable
Purge Valve Type
DLU (Hard Seat)
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Governor Included
Yes
Weight
15.53 lb
