$869.95
$1,043.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

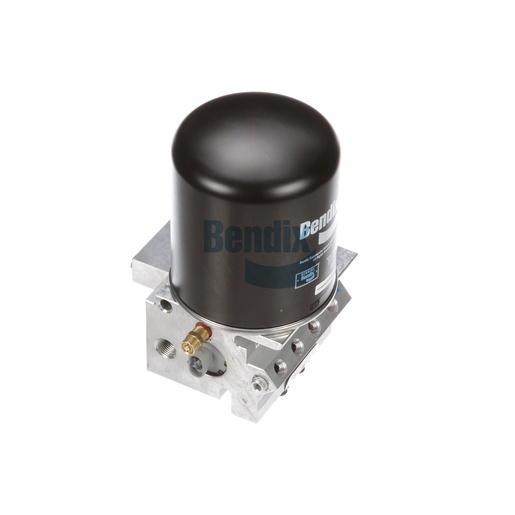

The Bendix air dryer is a key component in the air treatment system of your commercial vehicle, designed to remove moisture and contaminants from the compressed air supply. This model features a standard cartridge and operates efficiently at varying temperatures from -40°F to 200°F, ensuring optimal performance in diverse conditions. The air dryer is essential for maintaining the integrity of your braking system, as it prevents moisture buildup that could lead to corrosion and system failures. With a net weight of 6.9 kg, it is designed for easy installation and maintenance, making it an excellent choice for fleet operations. Utilizing genuine Bendix OEM parts is critical for ensuring the long-term performance of your vehicle's air treatment systems. For a reliable selection of Bendix air dryers and other essential components, Source One Parts Center is the preferred source for authentic OEM parts that meet the rigorous demands of commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
AUX 1 Delivery Port 1
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 2
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 3
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 4
1/4-18 NPT (Plugged)
Remote Charge / Fill Port (through Desiccant)
1/4-18 NPT x 1/4-18 NPT (Female / 90° Elbow / Single Check Vlv)
Governor Unloader Port
1/8-27 NPT
AUX 1 Delivery Opening Pressure
106 PSI
AUX 2 Delivery Opening Pressure
106 PSI
PRI Delivery Opening Pressure
106 PSI
SEC Delivery Opening Pressure
106 PSI
Safety Valve Opening Pressure
153 PSI
Width
160.0 mm (6.3 in)
Length
183.0 mm (7.2 in)
Heater / Thermostat Rating
24V / 90W
Height
286.0 mm (11.26 in)
Governor Reservoir Port
3/8-18 NPT
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Included
No
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Weight
15.25 lb
