$809.95
$971.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

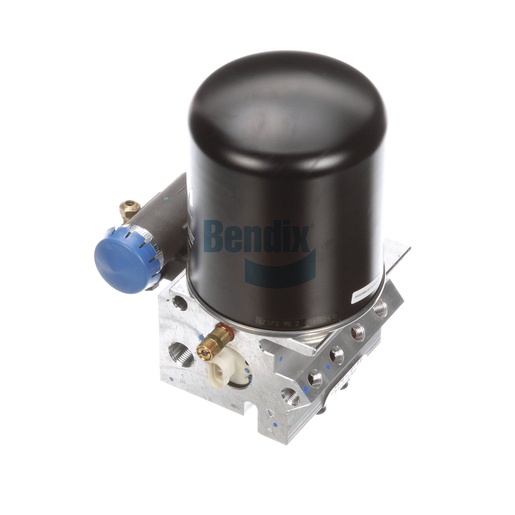

The Bendix Air Dryer is a state-of-the-art air treatment solution that effectively removes moisture and contaminants from compressed air systems in commercial vehicles. Designed as a stand-alone unit, it features a non-adjustable governor and a robust construction that withstands extreme temperatures from -40°F to 160°F. With a cut-in pressure of 110 PSI and a cut-out pressure of 130 PSI, this air dryer ensures optimal air quality, which is critical for the efficient operation of air brake systems. The inclusion of a purge valve enhances its effectiveness in expelling moisture, thus prolonging the life of brake components and improving overall vehicle performance. Trust Source One Parts Center for authentic Bendix OEM parts, where quality and reliability are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 Tube (Compression / 90° Elbow)
SEC Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
AUX 1 Delivery Opening Pressure
112 PSI
AUX 2 Delivery Opening Pressure
112 PSI
PRI Delivery Opening Pressure
112 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
9.99 lb
