$789.95
$947.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

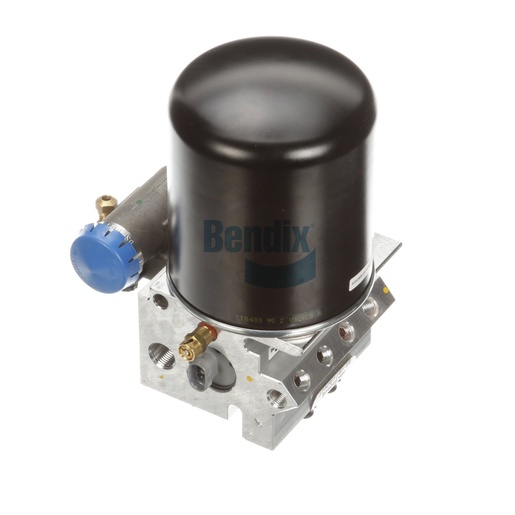

The Bendix Air Dryer (AD-IS) is engineered to provide superior moisture removal from your vehicle's air brake system, ensuring optimal performance and safety. This stand-alone dryer is capable of operating in extreme temperatures, from -40°F to 160°F, making it ideal for heavy-duty applications. With a robust construction and advanced technology, it helps prevent moisture-related issues that can compromise your braking system's efficiency. Regular maintenance and timely replacement of your air dryer are essential to ensure reliable vehicle operation. When it comes to genuine Bendix OEM parts, Source One Parts Center is the premier destination for quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 Tube (Compression / 90° Elbow)
SEC Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
AUX 1 Delivery Opening Pressure
112 PSI
AUX 2 Delivery Opening Pressure
112 PSI
PRI Delivery Opening Pressure
112 PSI
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Heater / Thermostat Rating
24V / 90W
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Heater Connector Color
Gray
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Governor Included
Yes
Weight
15.7 lb
