DESCRIPTION

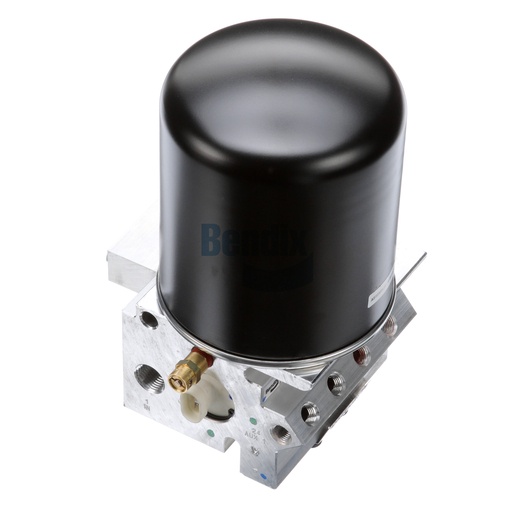

The Air Dryer from Bendix is a vital component designed to enhance the efficiency of your vehicle's air system. It effectively removes moisture and contaminants from the compressed air, ensuring that the air brake system operates smoothly and reliably. This air dryer is engineered to withstand extreme temperatures, with a maximum operating temperature of 200°F, making it suitable for a wide range of commercial applications. Its compact design facilitates easy installation and maintenance, ensuring that your vehicle remains in peak operating condition. To ensure you're getting the best quality, purchase genuine Bendix parts from Source One Parts Center, your trusted source for OEM components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT
PRI Delivery Opening Pressure
103 PSI
AUX 1 Delivery Opening Pressure
109 PSI
AUX 2 Delivery Opening Pressure
109 PSI
SEC Delivery Opening Pressure
109 PSI
Heater / Thermostat Rating
12V / 90W
Safety Valve Opening Pressure
153 PSI
Governor Reservoir Port
3/8-18 NPT
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Air Dryer Type
Alpha
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Included
No
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Purge Valve Type
Soft Seat
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Weight
14.83 lb
