DESCRIPTION

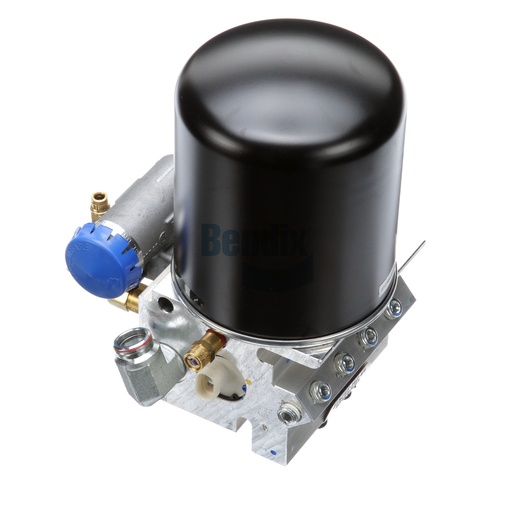

The Bendix Air Dryer is an essential component for maintaining the efficiency and performance of your commercial vehicle's air system. Designed to ensure that the compressed air used in brake systems is clean and dry, this air dryer utilizes advanced filtration and drying technologies to remove moisture and contaminants. With a cut-in pressure of 110 PSI and a cut-out pressure of 130 PSI, it effectively manages the air pressure, ensuring optimal brake performance under various conditions. The non-adjustable governor included ensures reliable operation, while the durable construction withstands the rigors of heavy-duty use. This air dryer is particularly beneficial in preventing corrosion and wear in air brake systems, ultimately prolonging the life of your vehicle. The purge valve type is designed for hard seat functionality, ensuring a solid seal and reliable operation. For those who demand the best in air treatment solutions, Source One Parts Center is your top destination for genuine Bendix OEM parts, ensuring you receive authentic quality for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
AUX 1 Delivery Port 1
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 2
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 3
1/4-18 NPT (Plugged)
AUX 1 Delivery Port 4
1/4-18 NPT (Plugged)
AUX 2 Delivery Port
1/4-18 NPT (Plugged)
PRI Delivery Port 21
1/4-18 NPT x 1/2 PTC (Straight)
SEC Delivery Port 22
1/4-18 NPT x 1/2 PTC (Straight)
Remote Charge / Fill Port (through Desiccant)
1/4-18 NPT x 1/4-18 NPT (with Single Check Vlv / Schrader Vlv)
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 PTC (90° Elbow)
PRI Delivery Opening Pressure
103 PSI
SEC Delivery Opening Pressure
109 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Pressure Protection Valve Configuration
2 in Series
Length
254.0 mm (10.0 in)
Width
300.0 mm (11.81 in)
Height
340.6 mm (13.41 in)
Supply Port
5/8 STC (90° Elbow)
AUX 1 Delivery Opening Pressure
55 PSI
Harmonized System (HS) Code
842139
AUX 2 Delivery Opening Pressure
85 PSI
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
15.63 lb
