$779.95
$935.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

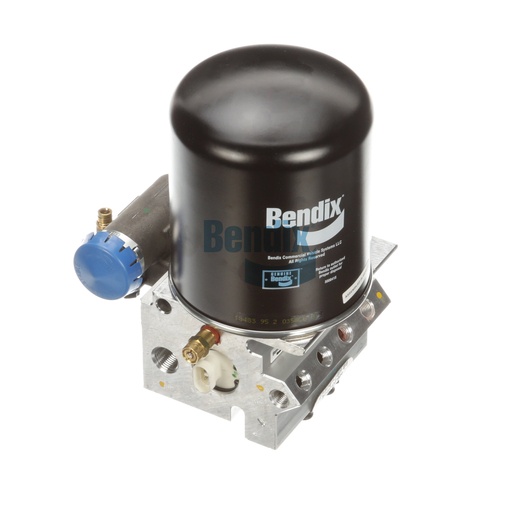

The Bendix Air Dryer is an essential component for maintaining air quality in your commercial vehicle's braking system. Designed as a stand-alone unit, this dryer effectively removes moisture and contaminants from the compressed air, ensuring optimal performance and longevity of the air brake system. With a non-adjustable governor type and a cut-in pressure of 110 PSI, it guarantees consistent air supply while preventing damage to the system. The unit features multiple delivery ports and a purge valve type with a hard seat, making it versatile for various truck configurations. Weighing in at 14.0 lb and crafted with precision in Mexico, this air dryer is built to withstand extreme temperatures ranging from -40 °F to 200 °F. Investing in this air dryer will significantly enhance your vehicle's efficiency and safety. Trust Source One Parts Center for your purchase of genuine Bendix OEM parts, ensuring you receive top-quality products and exceptional support.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 PTC (90° Elbow)
PRI Delivery Opening Pressure
103 PSI
AUX 1 Delivery Opening Pressure
109 PSI
AUX 2 Delivery Opening Pressure
109 PSI
SEC Delivery Opening Pressure
109 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
14 lb
