$729.95
$875.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

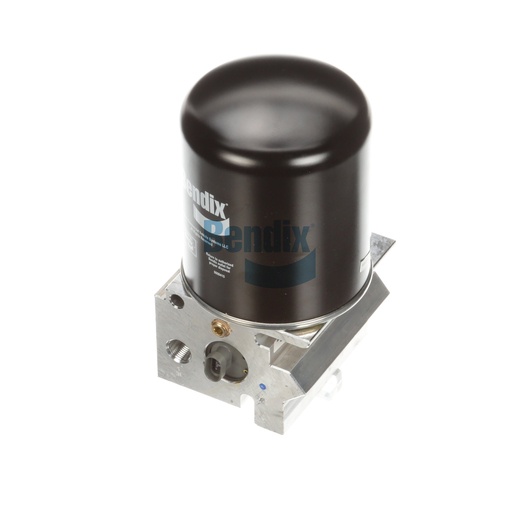

The Bendix Air Dryer is a critical component of your truck's air treatment system, designed to remove moisture and contaminants from the compressed air, ensuring reliable brake operation. This air dryer features a durable construction and is designed to operate efficiently under a wide range of temperatures, with a maximum operating temperature of 200°F and a minimum of -40°F. Its innovative design includes a purge valve that effectively expels moisture, preventing damage to the braking system and enhancing overall performance. The air dryer is also equipped with a standard purge exhaust port, allowing for easy maintenance and installation. By opting for the Bendix Air Dryer from Source One Parts Center, you are investing in a product that meets strict OEM standards, ensuring durability and reliability in demanding conditions. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, providing the quality assurance needed for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
Governor Unloader Port
1/4-18 NPT
Heater / Thermostat Rating
24V / 90W
Governor Reservoir Port
3/8-18 NPT (Plugged)
PRI Delivery Port 21
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
842139
Air Dryer Type
Beta
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Included
No
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Purge Valve Type
Soft Seat
Cartridge Type
Standard
Purge Exhaust Port
Standard
Weight
14.44 lb
