$759.95
$911.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

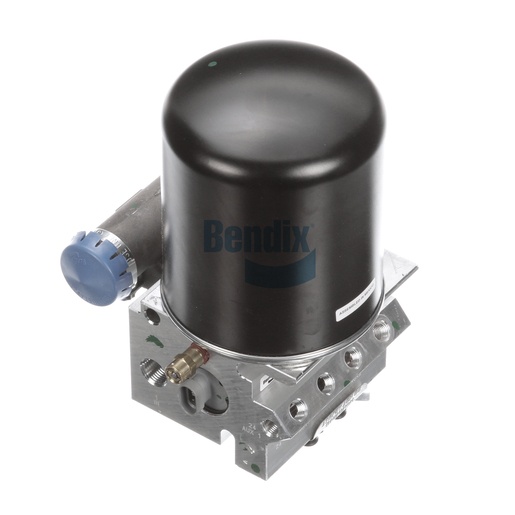

The Air Dryer is a vital component in maintaining the integrity of your truck's air brake system. Designed to remove moisture and contaminants from the compressed air, it ensures optimal brake performance and longevity of the system. This model features a robust design, suitable for a wide range of temperatures from -40°F to 160°F, making it reliable in various operating conditions. Weighing 6.4 kg (14.0 lb), this air dryer is engineered for durability and efficiency, providing superior air treatment capabilities. Its compatibility with standard air systems enhances its versatility, making it a great choice for both maintenance and upgrades. By investing in this Air Dryer, you are prioritizing the safety and efficiency of your braking system. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring that your commercial vehicle operates at its peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
PRI Delivery Opening Pressure
103 PSI
AUX 1 Delivery Opening Pressure
109 PSI
AUX 2 Delivery Opening Pressure
109 PSI
SEC Delivery Opening Pressure
109 PSI
Cut-in Pressure
110 PSI
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Heater / Thermostat Rating
24V / 90W
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Heater Connector Color
Gray
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Governor Included
Yes
Weight
14 lb
