DESCRIPTION

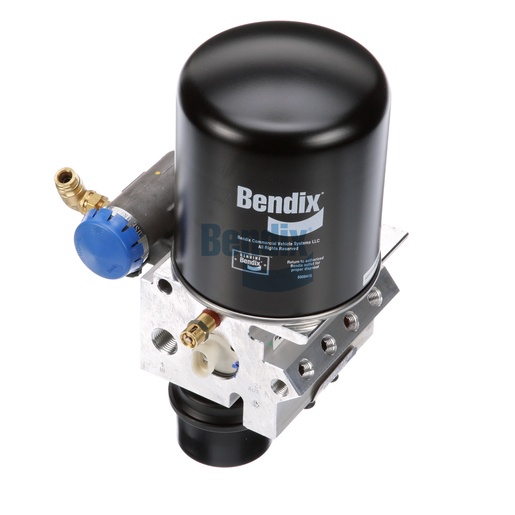

The Air Dryer from Bendix is a state-of-the-art solution for air treatment in your commercial vehicle, specifically designed to maintain optimal air quality in your braking system. This advanced dryer features a stand-alone design and is capable of efficiently removing moisture and contaminants from the compressed air, ensuring that your vehicle operates smoothly and safely. With a cartridge that is easy to replace and a non-adjustable governor type, this air dryer is built for convenience and reliability. Its robust construction and advanced technology provide exceptional performance, even in challenging environments. The air dryer's ability to function effectively under extreme temperatures (-40 °F to 185 °F) ensures that your braking system remains responsive and effective at all times. For those seeking genuine Bendix OEM parts, Source One Parts Center is the ultimate destination, ensuring you have access to the highest quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 3/8 PTC (90° Elbow Swivel)
AUX 1 Delivery Opening Pressure
103 PSI
PRI Delivery Opening Pressure
103 PSI
SEC Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
AUX 2 Delivery Opening Pressure
112 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard (with Adapter / Silencer)
Heater Connector Color
White
Governor Included
Yes
Weight
15.9 lb
