DESCRIPTION

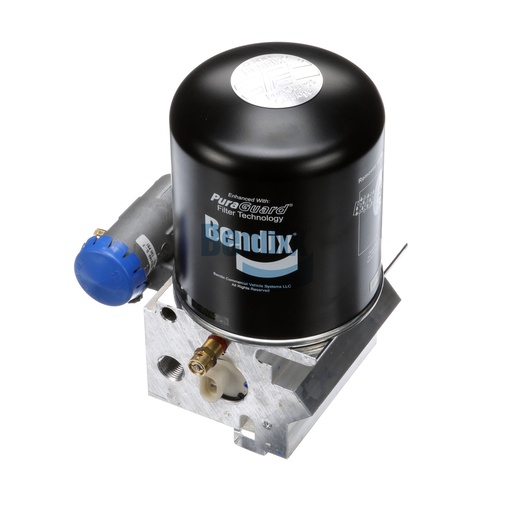

The Bendix Air Dryer is a critical component for ensuring the efficiency and reliability of your vehicle's air braking system. Designed to eliminate moisture and contaminants from the air supply, this air dryer plays a vital role in maintaining optimal brake performance. It features a compact design that allows for easy installation while offering a maximum inlet temperature of 160°F and a minimum operating temperature of -40°F, making it suitable for a variety of environments. With a net weight of 15.65 lbs, it is robust yet lightweight, ensuring reliable operation in demanding conditions. By using this air dryer, you can protect your braking system and enhance overall vehicle safety. For genuine Bendix OEM parts, Source One Parts Center is your top source for authentic components that ensure peak performance and durability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
SEC Delivery Port 22
1/4-18 NPT (Plugged)
PRI Delivery Port 21
1/4-18 NPT x 3/8 PTC (Straight)
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 PTC (Straight)
PRI Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Width
159.0 mm (6.26 in)
Maximum Inlet Temperature
160 °F (71 °C)
Pressure Protection Valve Configuration
2 in Series
Length
214.0 mm (8.43 in)
Height
236.0 mm (9.29 in)
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
15.65 lb
