DESCRIPTION

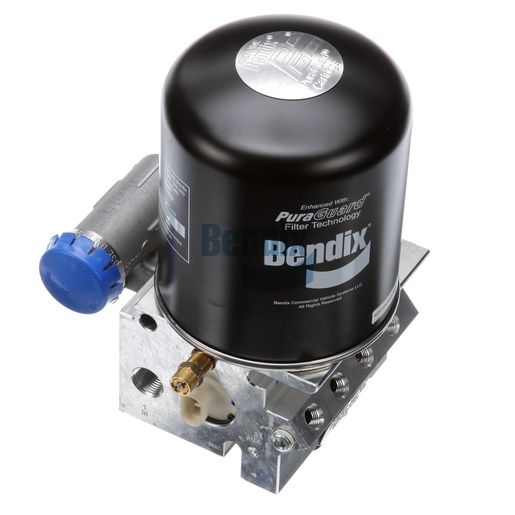

The Bendix air dryer is an essential component for maintaining air quality in your vehicle's braking system. This stand-alone air dryer effectively removes moisture and contaminants from the compressed air, ensuring optimal performance and extending the life of your air brake components. With advanced filtration technology and a robust design, this air dryer is capable of handling the demanding conditions of commercial trucking. Its easy installation and compatibility with various systems make it a preferred choice among fleet operators. For genuine Bendix OEM parts that you can rely on, turn to Source One Parts Center, the trusted source for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
PRI Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
AUX 1 Delivery Opening Pressure
112 PSI
AUX 2 Delivery Opening Pressure
112 PSI
SEC Delivery Opening Pressure
112 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
15.5 lb
