K050580

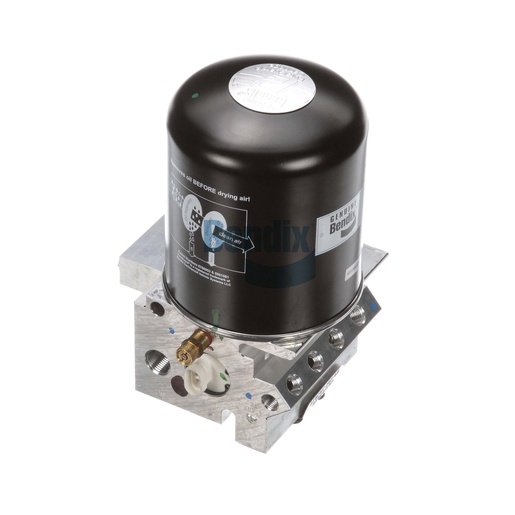

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Air Dryer is a pivotal component in your vehicle's air system, designed to filter out moisture and contaminants to ensure optimal performance of air-operated systems. This advanced unit type, known for its reliable operation, features a coalescing cartridge that effectively removes water and particulates, protecting your air brake system from damage. With a compact design, it's easy to install and fits seamlessly into various vehicle configurations. The air dryer's ability to maintain pressure within specified limits enhances both efficiency and safety during operation, minimizing the risk of brake failure. By investing in this air dryer, you enhance the reliability and longevity of your vehicle’s air systems. For high-quality genuine Bendix OEM parts, Source One Parts Center is your ultimate destination, ensuring you receive top-tier components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT
PRI Delivery Opening Pressure
103 PSI
AUX 1 Delivery Opening Pressure
112 PSI
AUX 2 Delivery Opening Pressure
112 PSI
SEC Delivery Opening Pressure
112 PSI
Heater / Thermostat Rating
12V / 90W
Safety Valve Opening Pressure
153 PSI
Governor Reservoir Port
3/8-18 NPT
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Air Dryer Type
Alpha
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Included
No
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Cartridge Type
PuraGuard (Coalescing)
Purge Valve Type
Soft Seat
Purge Exhaust Port
Standard
Heater Connector Color
White
Weight
14.55 lb
