K050675

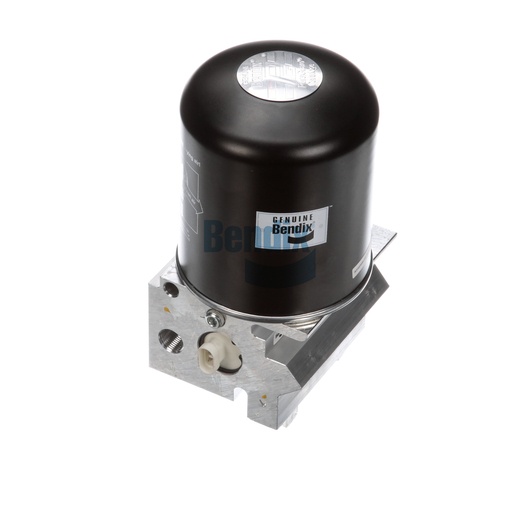

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is an essential component for maintaining the quality of compressed air in your vehicle's braking system. This high-performance dryer is designed to remove moisture and contaminants, ensuring optimal brake performance and enhancing safety on the road. With a net weight of 6.5 kg, it is robust yet manageable, facilitating straightforward installation. This air dryer is engineered to withstand the rigors of heavy-duty applications, making it a reliable choice for fleet operators. Its innovative design also minimizes maintenance needs, allowing for more efficient operations. For those seeking the best in Bendix OEM parts, Source One Parts Center is your go-to source, guaranteeing quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
Governor Unloader Port
1/4-18 NPT
Heater / Thermostat Rating
12V / 90W
Governor Reservoir Port
3/8-18 NPT (Plugged)
PRI Delivery Port 21
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
842139
Air Dryer Type
Beta
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Included
No
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Cartridge Type
PuraGuard (Coalescing)
Purge Valve Type
Soft Seat
Purge Exhaust Port
Standard
Heater Connector Color
White
Weight
14.4 lb
