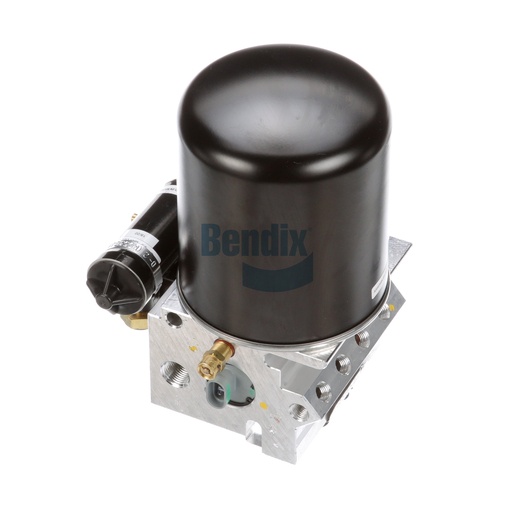

K052373
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Air Dryer is an essential system component designed to ensure the air supply to your commercial vehicle's brake system is clean and free from moisture and contaminants. This unit utilizes advanced filtration technology to provide optimal air quality, which is crucial for the effective operation of air brakes. With features such as adjustable governors and multiple ports for versatile installation, it is engineered to meet the demanding requirements of heavy-duty applications. Its durability and reliability ensure that your braking system operates smoothly, enhancing safety on the road. Source One Parts Center is the go-to source for quality Bendix OEM parts, ensuring you receive the very best for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT (Plugged)
Governor Reservoir Port
1/8-27 NPT (with Schrader Valve)
AUX 2 Delivery Opening Pressure
103 PSI
SEC Delivery Opening Pressure
103 PSI
AUX 1 Delivery Opening Pressure
112 PSI
PRI Delivery Opening Pressure
112 PSI
Cut-in Pressure
118 PSI
Cut-out Pressure
131 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Heater / Thermostat Rating
24V / 90W
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Governor Type
Adjustable
Purge Valve Type
DLU (Hard Seat)
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Governor Included
Yes
Weight
15.27 lb
