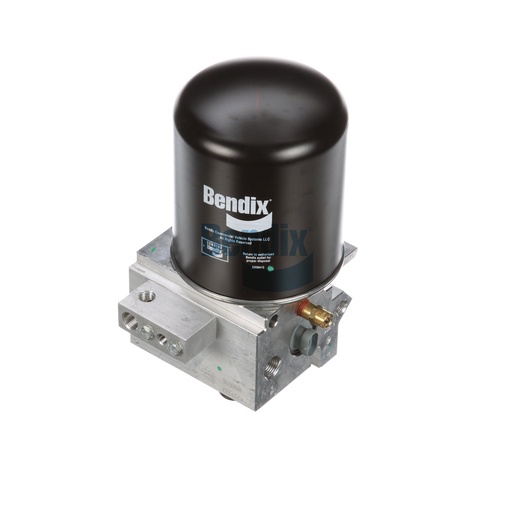

K064967
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix air dryer is an essential component for maintaining the integrity of your vehicle's air system, ensuring that moisture and contaminants are effectively removed from the compressed air before reaching critical components. Designed as a stand-alone unit, it features multiple delivery ports and a purge valve that enhances efficiency and performance. This air dryer operates under a range of temperatures from -40°F to 200°F, making it suitable for various climates and conditions. Its robust construction and thoughtful engineering help prevent costly air system failures, which can lead to downtime and expensive repairs. With a weight of 14.42 lbs, it is a compact yet powerful solution for your air treatment needs. Trust Source One Parts Center for authentic Bendix OEM parts, ensuring you receive the highest quality and reliability for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT
AUX 2 Delivery Opening Pressure
103 PSI
SEC Delivery Opening Pressure
103 PSI
AUX 1 Delivery Opening Pressure
112 PSI
PRI Delivery Opening Pressure
112 PSI
Safety Valve Opening Pressure
153 PSI
Heater / Thermostat Rating
24V / 90W
Governor Reservoir Port
3/8-18 NPT
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Included
No
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Weight
14.42 lb
