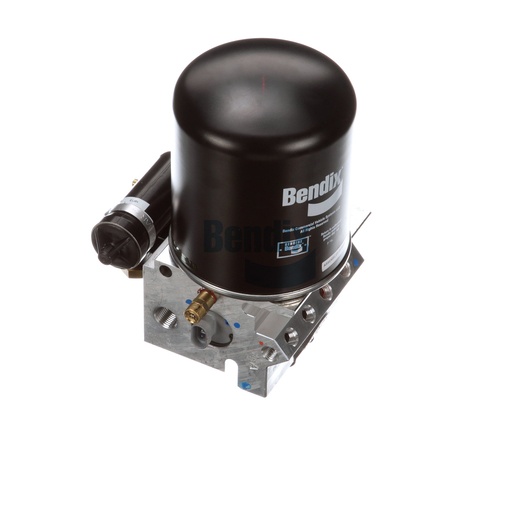

K094301
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is a vital component in maintaining the efficiency and effectiveness of your truck's air system. This AD-IS model is engineered to remove moisture and debris from the compressed air, preventing damage to critical braking components and ensuring optimal performance. Its durable construction is designed for heavy-duty applications, making it suitable for various commercial vehicles. The air dryer's user-friendly design allows for easy maintenance, enhancing the longevity of your air system. With features like an adjustable governor and effective purge valve, this component ensures reliable air supply for your braking system. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your best resource, offering a wide range of quality components to support your vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT (Plugged)
Governor Reservoir Port
1/8-27 NPT (with Schrader Valve)
AUX 2 Delivery Opening Pressure
103 PSI
SEC Delivery Opening Pressure
103 PSI
AUX 1 Delivery Opening Pressure
112 PSI
PRI Delivery Opening Pressure
112 PSI
Cut-in Pressure
128 PSI
Cut-out Pressure
139 PSI
Safety Valve Opening Pressure
153 PSI
Heater / Thermostat Rating
24V / 90W
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Governor Type
Adjustable
Purge Valve Type
DLU (Hard Seat)
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Governor Included
Yes
Weight
15.24 lb
