$719.95
$863.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

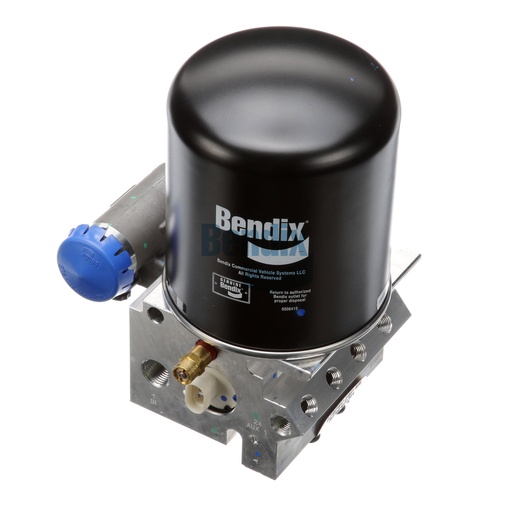

The Bendix Air Dryer is an essential component of air treatment systems in commercial vehicles, designed to remove moisture and contaminants from the air supply. With its non-adjustable governor and robust construction, this air dryer ensures that your vehicle's braking system operates efficiently and reliably, even under the most demanding conditions. It features a maximum inlet temperature of 160 °F and is equipped with multiple delivery ports for versatile installation options. The compact design and lightweight nature, weighing just 7.0 kg, facilitate easy integration into various vehicle models, making it a favorite among fleet operators. By maintaining dry air in the brake system, this air dryer significantly enhances the longevity and performance of brake components, reducing maintenance costs over time. Choosing genuine Bendix parts means you are investing in the quality and reliability that comes with decades of industry experience. For all your Bendix OEM parts, Source One Parts Center is the premier destination, ensuring you receive the best products for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
PRI Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
AUX 1 Delivery Opening Pressure
112 PSI
AUX 2 Delivery Opening Pressure
112 PSI
SEC Delivery Opening Pressure
112 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Length
158.0 mm (6.22 in)
Maximum Inlet Temperature
160 °F (71 °C)
Width
245.0 mm (9.65 in)
Height
296.0 mm (11.65 in)
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
DLU (Hard Seat)
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
15.39 lb
