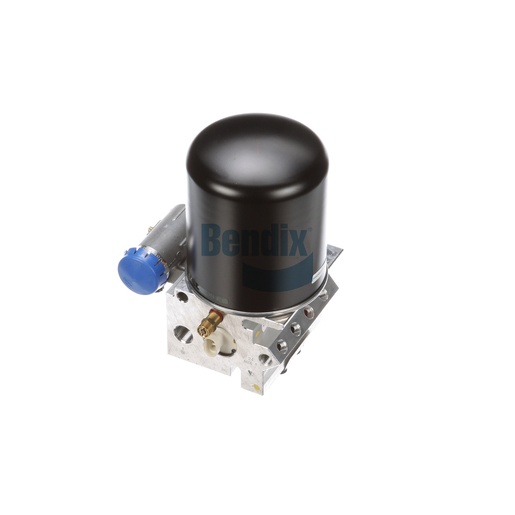

K127053
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is an essential component designed to improve the efficiency and reliability of your vehicle's air system. This advanced air treatment unit effectively removes moisture and contaminants from the compressed air, ensuring optimal performance of air-powered systems, such as brakes and suspension. With its stand-alone design and non-adjustable governor type, this air dryer is engineered for durability and ease of installation. The unit operates efficiently under a wide range of temperatures, making it suitable for various environments. By integrating this air dryer into your vehicle, you can enhance its overall functionality and extend the lifespan of air components. For sourcing genuine Bendix OEM parts, Source One Parts Center is your trusted partner, providing quality products that keep your truck running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT (Plugged)
Governor Reservoir Port
1/8-27 NPT (with Schrader Valve)
AUX 1 Delivery Opening Pressure
103 PSI
PRI Delivery Opening Pressure
103 PSI
SEC Delivery Opening Pressure
103 PSI
Cut-in Pressure
105 PSI
AUX 2 Delivery Opening Pressure
112 PSI
Cut-out Pressure
125 PSI
Heater / Thermostat Rating
12V / 90W
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Width
160.0 mm (6.3 in)
Length
216.0 mm (8.5 in)
Height
286.0 mm (11.26 in)
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
DLU (Hard Seat)
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
15.3 lb
