$949.95
$1,139.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

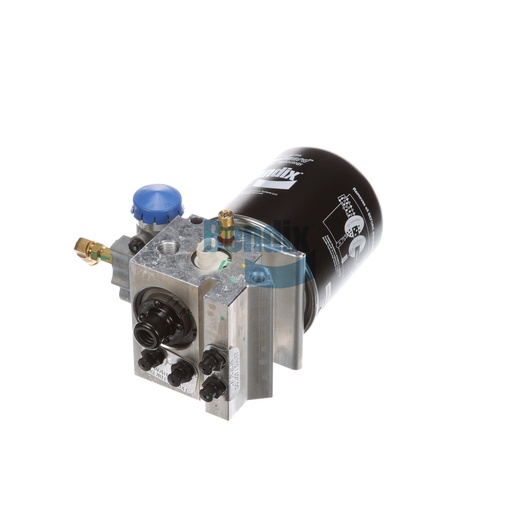

The Bendix Air Dryer is a vital component in the air treatment system of commercial vehicles, designed to remove moisture and contaminants from the compressed air system. This ensures optimal performance and longevity of the braking system, preventing issues such as freezing and corrosion. The air dryer features a non-adjustable governor and is equipped with a PuraGuard cartridge, providing efficient filtration. With a maximum inlet temperature of 160°F and a robust construction, it is designed to perform reliably in various environmental conditions. Measuring 291 mm in width and weighing 7.0 kg, it is compact yet powerful, making it easy to integrate into your vehicle's system. The Bendix Air Dryer enhances the overall safety and functionality of your vehicle, ensuring that you can depend on your brakes when it matters most. For high-quality and reliable parts, Source One Parts Center is your best choice for genuine Bendix OEM components, ensuring you keep your vehicle performing at its peak.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 3/8 PTC (90° Elbow Swivel)
AUX 1 Delivery Opening Pressure
106 PSI
AUX 2 Delivery Opening Pressure
106 PSI
PRI Delivery Opening Pressure
106 PSI
SEC Delivery Opening Pressure
106 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Width
291.0 mm (11.46 in)
Height
298.0 mm (11.73 in)
Length
301.0 mm (11.85 in)
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
15.35 lb
